Q96 X3 ATV TV box

{{ product.price_format }}
{{ product.origin_price_format }}
Quantity:
SKU:{{ product.sku }}
Model: {{ product.model }}
weight: {{ product.weight }} Kilogram

{{ variable.name }}

{{ value.name }}
Item Description

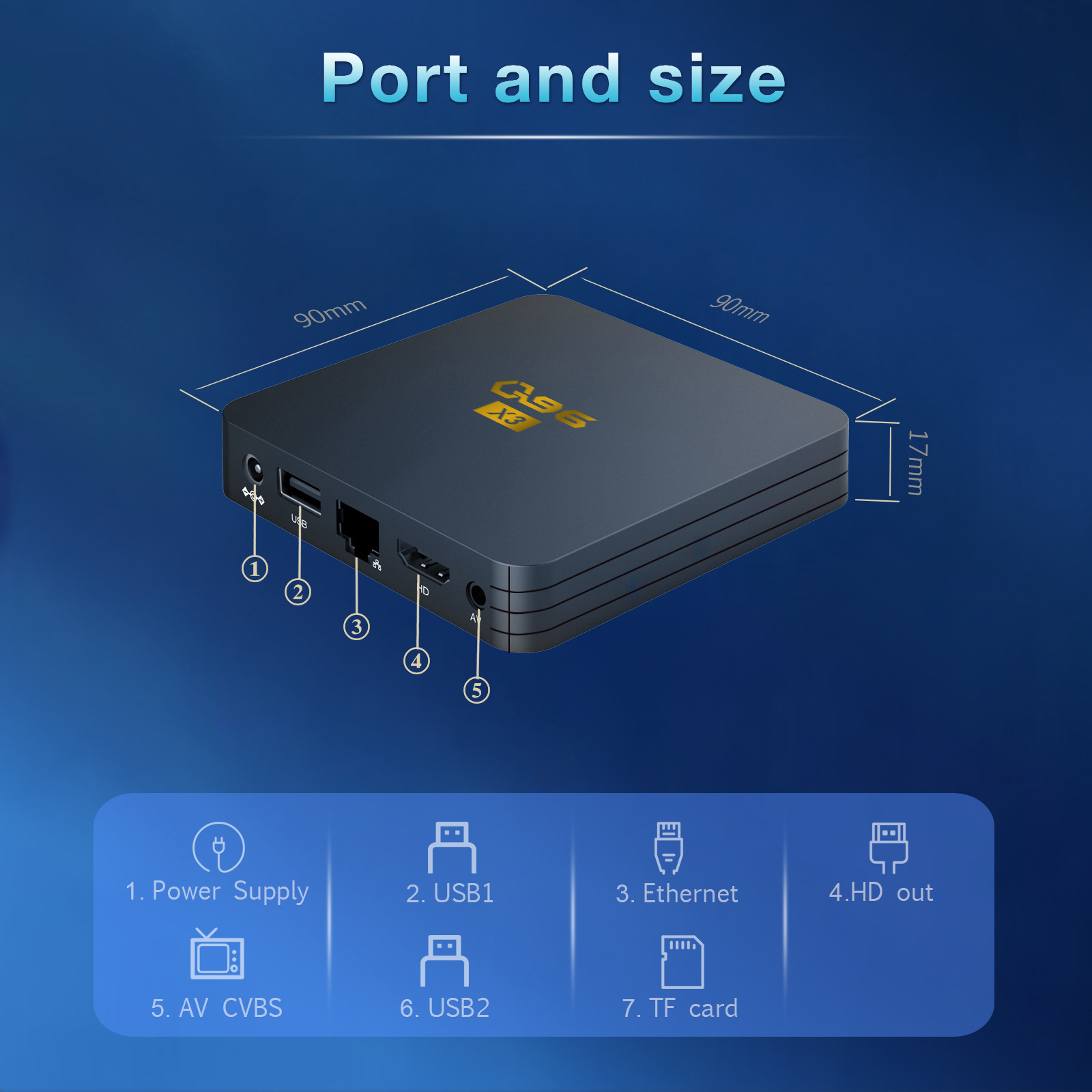

Product Size 929217MM
Packaged Weight 0.4kg
Packing Size 18512451MM
Product Color Black

System Config

Item Description
CPU H313 Quad-core Cortex-A53 Frequency: 1.5G
GPU Mali-G31 MP2
FLASH 8/16 GB
SDRAM 1/2 GB
Power Supply DC 5V/2A

Main Features

Item Description
Case Plastic material (Private model)
OS Android TV 10.0
KODI 18.1
WIFI 2.4G + 5G + BT5.2
3D Hardware 3D graphics acceleration

Support Decoder Format

Item Description
VP9-10 Profile-2 Up to 4K@30fps
H.265 HEVC MP-10@L5.1 Up to 4K@60fps
H.264 AVC HP@L5.1 Up to 4Kx2K@30fps
H.264 MVC Up to 1080P @60fps
MPEG-4 ASP@L5 Up to 1080P@60fps (ISO-14496)
WMV/VC-1 SP/MP/AP Up to 1080P@60fps
AVS-P16(AVS+)/AVS-P2 JiZhun Profile Up to 1080P@60fps
MPEG-2 MP/HL Up to 1080P@60fps (ISO-13818)
MPEG-1 MP/HL Up to 1080P@60fps (ISO-11172)
RealVideo 8/9/10 Up to 1080P@60fps
WebM Up to VGA
Multiple Language & Subtitle Video Support Yes
MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918)
Supports JPEG thumbnail, scaling, rotation, and transition effects
Supports File Types *.mkv, *.wmv, *.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm, *.jpg
HD Formats HD MPEG1/2/4, H.264, HD AVC/VC-1, RM/RMVB, Xvid/DivX3/4/5/6, RealVideo 8/9/10

Support Media Format

Item Description
Supported Formats Avi, Rm, Rmvb, Ts, Vob, Mkv, Mov, ISO, wmv, asf, flv, dat, mpg, mpeg

Support Music Format

Item Description
Supported Formats MP3, WMA, AAC, WAV, OGG, AC3, DDP, TrueHD, DTS, DTS/HD, FLAC, APE

Support Photo Format

Item Description
Supported Formats HD JPEG, BMP, GIF, PNG, TIFF

Connectivity

Item Description
USB Host 2 USB 2.0
Card Reader SD/SDHC/MMC cards
HDD File System FAT16/FAT32/NTFS
Support Subtitle SRT, SMI, SUB, SSA, IDX+USB
High Definition Video Output SD/HD max. 4K pixel
OSD Type of Languages English, French, German, Spanish, Italian, etc.
LAN Ethernet: Standard 10/100M RJ-45
Wireless Built-in WiFi
Mouse/Keyboard Support mouse and keyboard via USB; Support 2.4GHz wireless mouse and keyboard via 2.4GHz USB dongle
HDMI HDMI 2.0 up to 4K Output with HDR, CEC and HDCP 2.2, 4K@60fps max
Resolution Output 4K2K HD decoding, 4K H.265 Hardware Video Decode and 4K Output
1080P/AV/3G Support
